Feature:
1. Remote Monitoring And Control: The micro grid tie inverter offers advanced remote control capabilities, allowing users to monitoring operational status and adjust power parameters from anywhere, eliminating the need for physical presence. This flexibility ensures optimal performance and management of energy production in real time.
2. Wide Voltage Support: Designed to accommodate a broad input range, this solar grid tie micro inverter supports an output voltage of 90260V, making it highly versatile and adaptable to various electrical systems. Users can rely on its consistent performance regardless of distance from the power source, enhancing its utility in diverse settings.
3. Comprehensive Guard Features: The solar grid micro inverter is equipped with built in fuses and protective devices, including reverse input and output connection guard, safeguarding against damage from incorrect wiring. The multi layered guard design ensures peace of mind, allowing users to operate the device confidently without fear of failure.

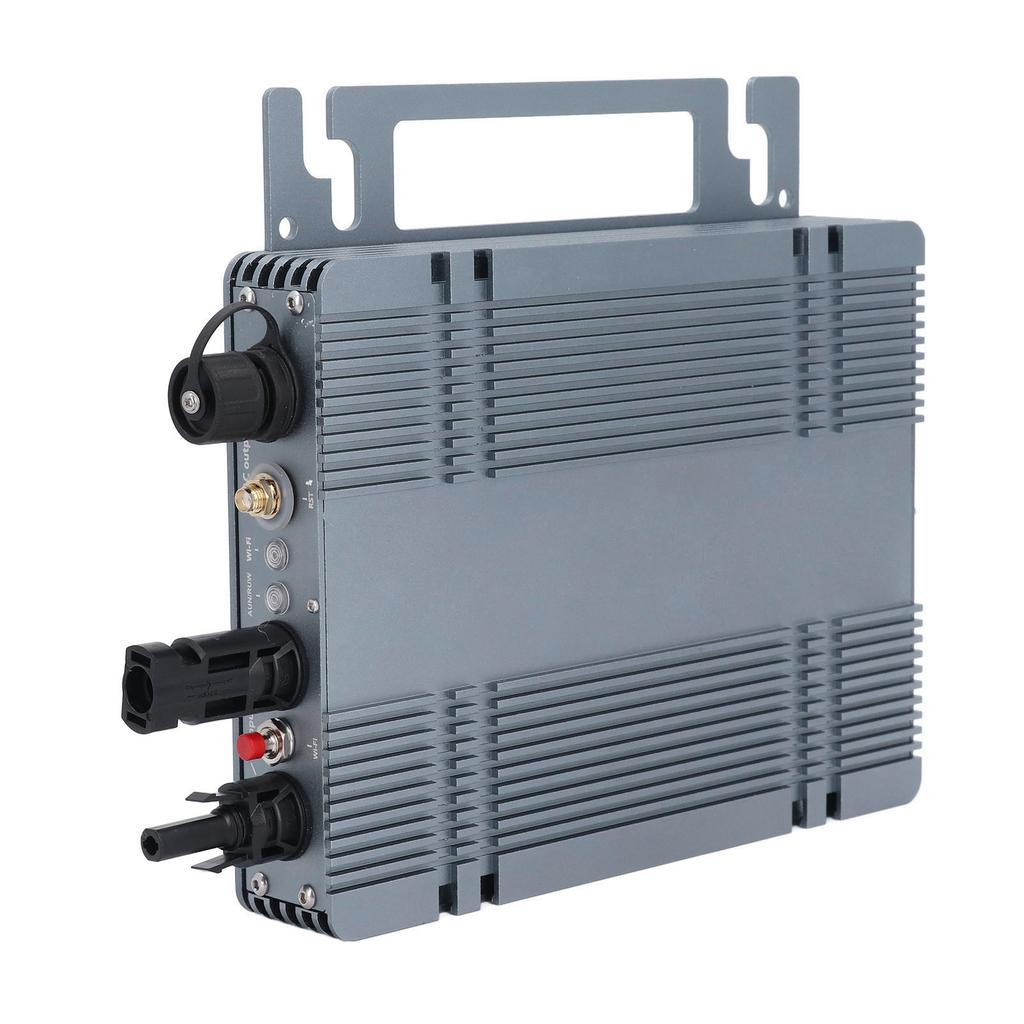

4. Rugged Construction: Constructed from excellent aluminum alloy, the grid tie solar power inverter boasts high strength and exceptional durability, ensuring it withstands harsh environmental conditions. Its robust design facilitates excellent heat dissipation, maintaining optimal operating conditions for good power conversion over time.
5. IP66 Water Proof Rating: With an impressive IP66 water proof rating, this solar panel inverter is engineered to endure extreme weather conditions. Its dust tight and water resistant features ensure good performance in outdoor installations, making it a suitable choice for excellent solar energy management regardless of environmental challenges.
Specification:
Item Type: Single Phase Solar Grid Tie Micro Inverter
Material: Aluminum Alloy
Input Data (DC, PV):
Input Connector Quantity: 1 SET
MPPT Voltage Range: 2248V
Operating Voltage Range: 2050V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 550W
Maximum Input Current: 15A
Output Data (AC):
Single Phase Grid: 90260V (Self Adaptive)
Rated Output Power: 550W
Maximum Output Power: 550W
Nominal Output Current: 120V AC: 4.6A, 230V AC: 2.4A
Nominal Output Voltage: AC 120V AC 230V (Actual 90260V Self Adaptive)
Default Output Voltage Range: AC 120V (80160V), AC 230V (180270V)
Nominal Output Frequency: 50Hz, 60Hz
Default Output Frequency Range: 50Hz: 47.5Hz51.5Hz 60Hz: 58Hz61Hz
Power Factor: >0.99percent
Total Harmonic Distortion: THD<5percent
Maximum Number of Units for Each Branch: 120V AC: 4 Units, 230V AC: 8 Units
Efficiency:
Peak Efficiency: 95percent
Nominal MPPT Efficiency: 99.5percent
Night Consumption: <1W
Mechanical Data:
Operating Temperature Range: 40 celsius +65 celsius
Storage Temperature Range: 40 celsius +85 celsius
Maximum AC Bus Cable Current: 20A
Water Proof Rating: IP66
Cooling Mode: Nature Convection, No fan
Other Features:
Communicating: WIFI (Cloud Monitoring)
Transformer Design: Transformer, Electrical Isolation
Integrated Grounding: Device grounding provided by PE in the AC cable. No additional grounding required.
Guard Functions: Island Guard, Voltage Guard, Frequency Guard, Temperature Guard, Current Guard, etc.
Design Compliance: EN IEC6100032:2019+ A1:2021, EN 6100033:2013+ A1:2019+ A2:2021, EN IEC550142:2021, EN IEC550142:2021.

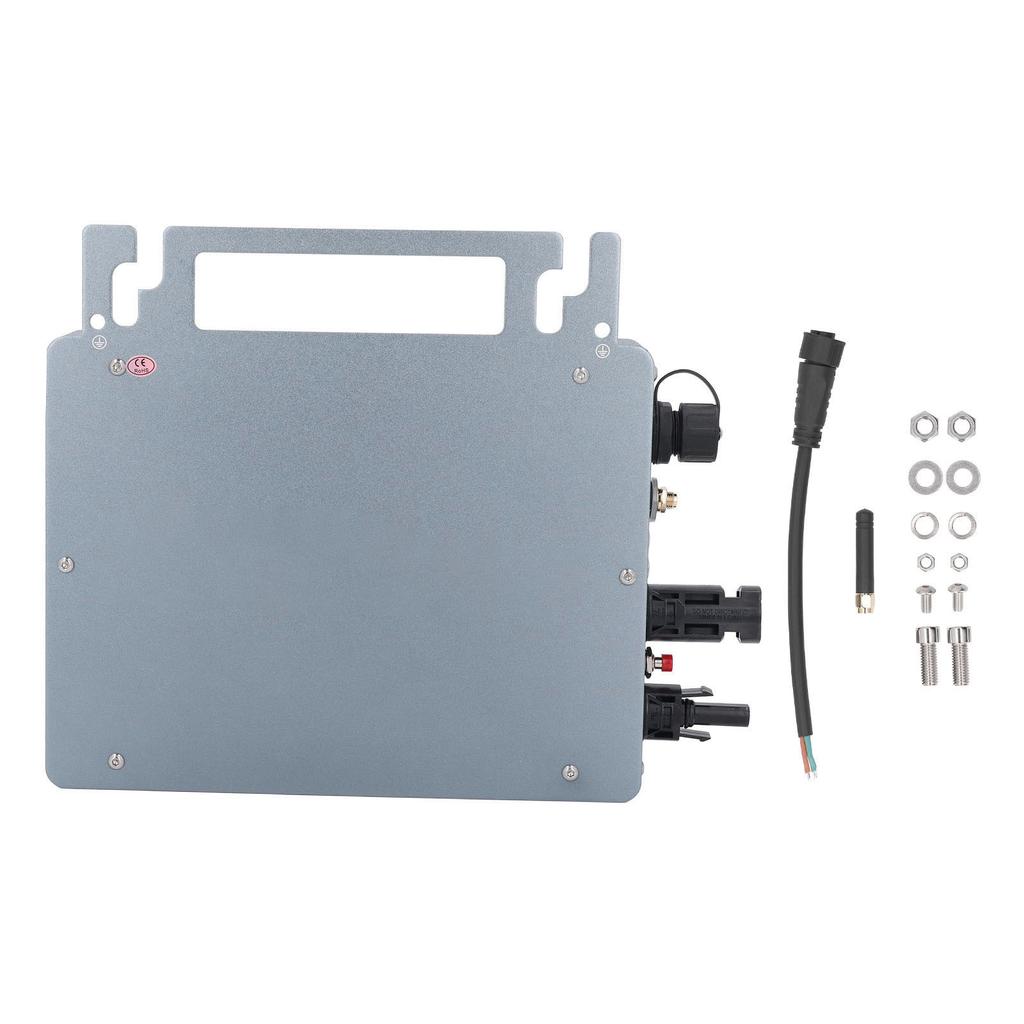

Package List:
1 x Inverter
1 x Output Cable
1 x Antennae
4 x Screws
4 x Washers
4 x Nuts
1 x Manual
Note:
The power cord does not come with a plug, customers need to purchase the corresponding plug for installation.Remote Monitoring And Control: The micro grid tie inverter offers advanced remote control capabilities, allowing users to monitoring operational status and adjust power parameters from anywhere, eliminating the need for physical presence. This flexibilit
