【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

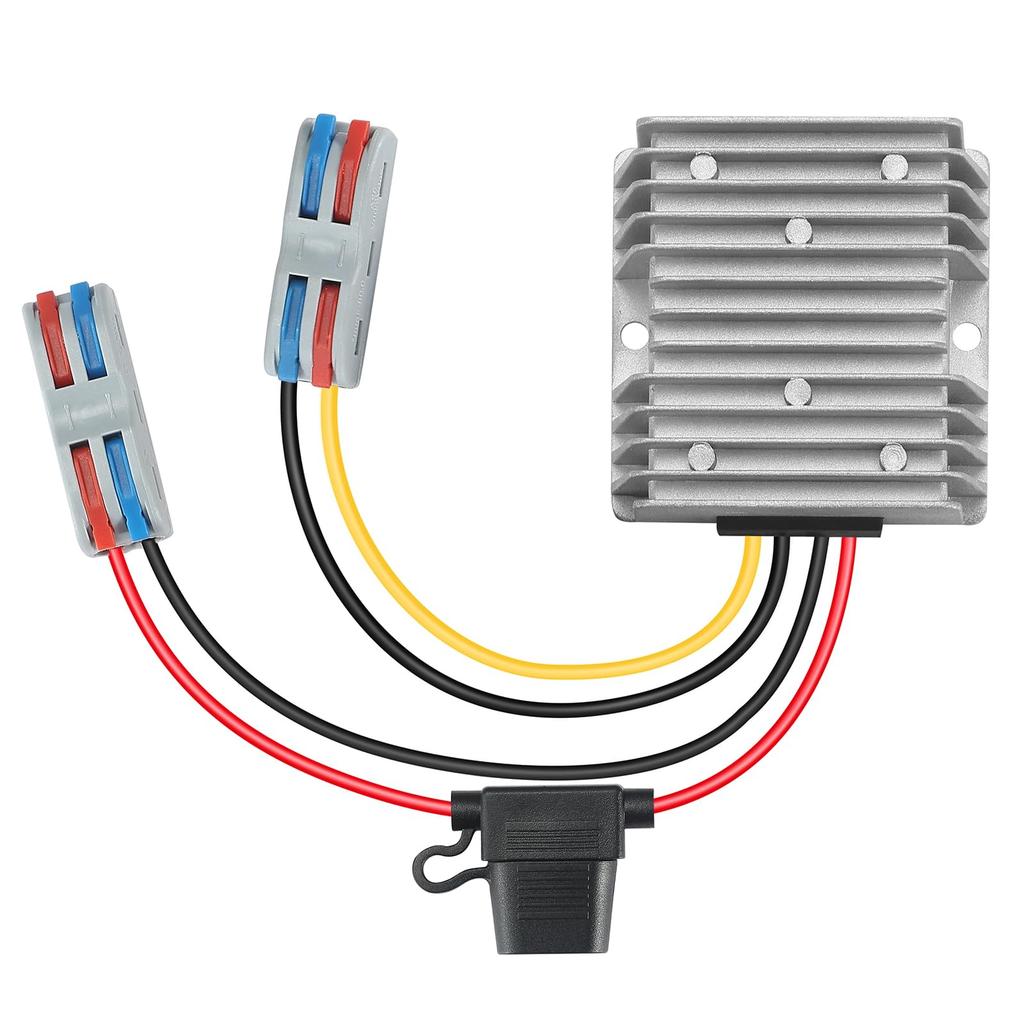

Power Converter: DC 20 to 90V to 12V 20A power converter with stable performance and over 90% conversion. Durable and good thermal protection
Voltage range: Input voltage range: 20 to 90V; Output voltage: 12V; Output current: 20A; Maximum output power: 240W; Small size and easy to place in any application; The converter is shockproof, waterproof, dustproof, stable and reliable quality
Intelligent protection: Supports output short circuit protection, overcurrent protection, waterproof IPX7 protection and overheating protection. When the operating temperature is -20℃~65℃, working environment temperature ≥40℃, please use the rated output current ≤40% to extend the life of the power supply.
Installation: Easy to install, peel the wire about 10mm, pull 90°MAX on the boost key, insert the wire and press the boost key firmly; The converter has red, yellow and black wires, red and yellow are connected to the positive electrode, and black is connected to the negative electrode
Wide application: Wide range of uses, excellent voltage reducer can be used for LED light strips, monitoring systems, golf carts, solar panels, speakers, car headlights and etc.
About DC 20V~90V~12V 20A 240W Step Down Converter Input Range: 20~90V Transfer Efficiency: 95 Output Voltage: 12V Output 20A MAX Maximum Output 240W MAX Working Temperature: -20 to 65 Storage Temperature: -40 to 85 Working Humidity: 10% to 90% RH Waterproof Classification IP67 Short Circuit Protection: Yes Over Temperature Protection: Yes Over Current Protection Yes Anti-Connection Protection: Yes Heat Dissipation Method Natural Heat Dissipation Note 1. The product is stored in a dry, cool place with a temperature between 40℃ and 80℃, avoid contact with corrosive substances and stay away from flames and heat sources 2. Do not use the device near heat sources, such as fire or heaters 3. Do not connect the input line to 220V electricity 4. Do not put the product into fire or heat it 5. Do not short-circuit the positive or negative rod of the product on wire or other metal objects 6. It is prohibited for non-professional personnel to disassemble and repair the product by themselves
