Feature:
1. MOTOR FEATURES: 540 brushed motor has large torsion, adopts dual way bearing, with strong magnetic force, low calorific value, high power and less interference.
2. EXCELLENT PARTS: Using high purity copper windings, the sealed bearing has low friction and low noise, and the precisely balanced rotor has good stability.
3. OVERHEAT PROTECTION: When the temperature reaches 100 celsius , the output power decreases, the speed becomes slower, when the temperature drops, the speed will return to normal.
4. BRUSHED ESC: Equipped with 65A waterproof brushed ESC compatible with brushed motor, with white plug, high power, can be used for different ships or cars.
5. ESC CURRENT: The ESC has strong anti current ability, good heat dissipation performance, forward 320A, reverse 160A, brake 270A, stable and reliable in operation.
Specification:

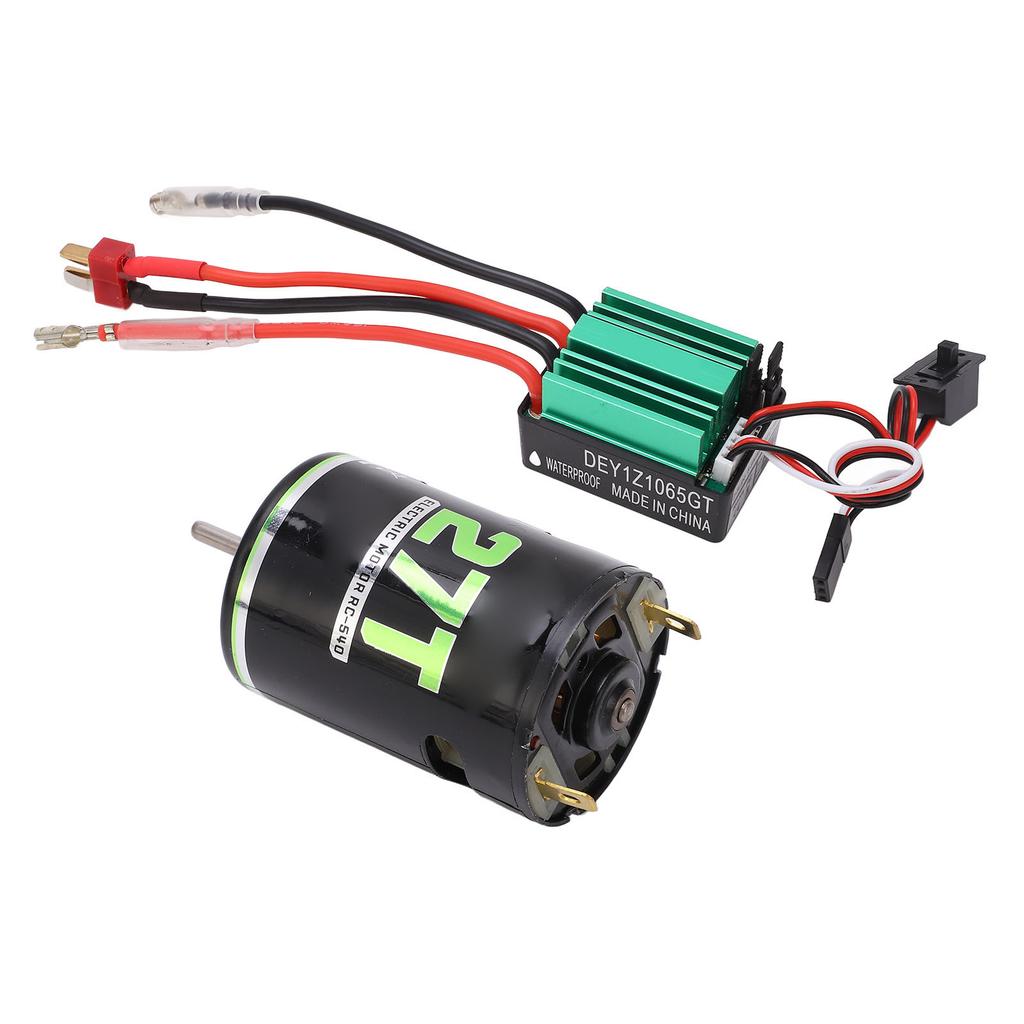

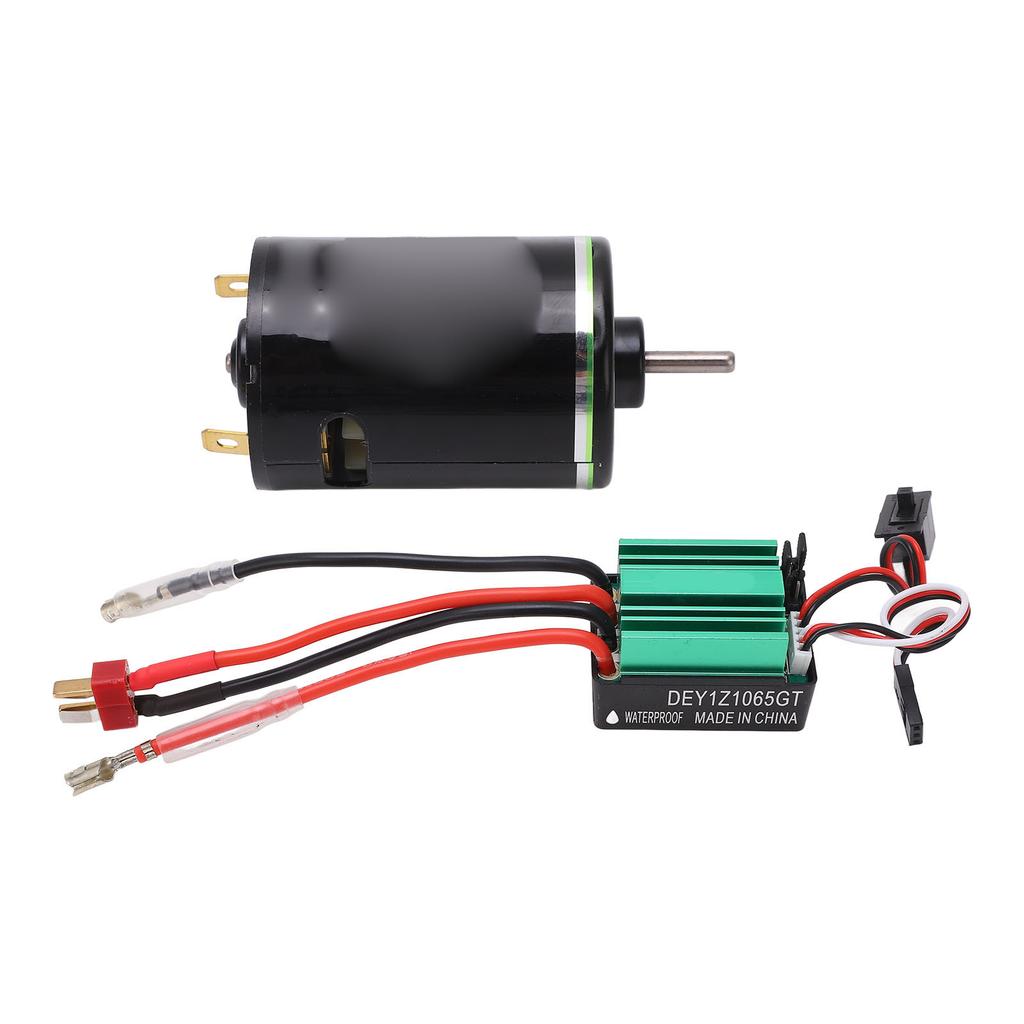

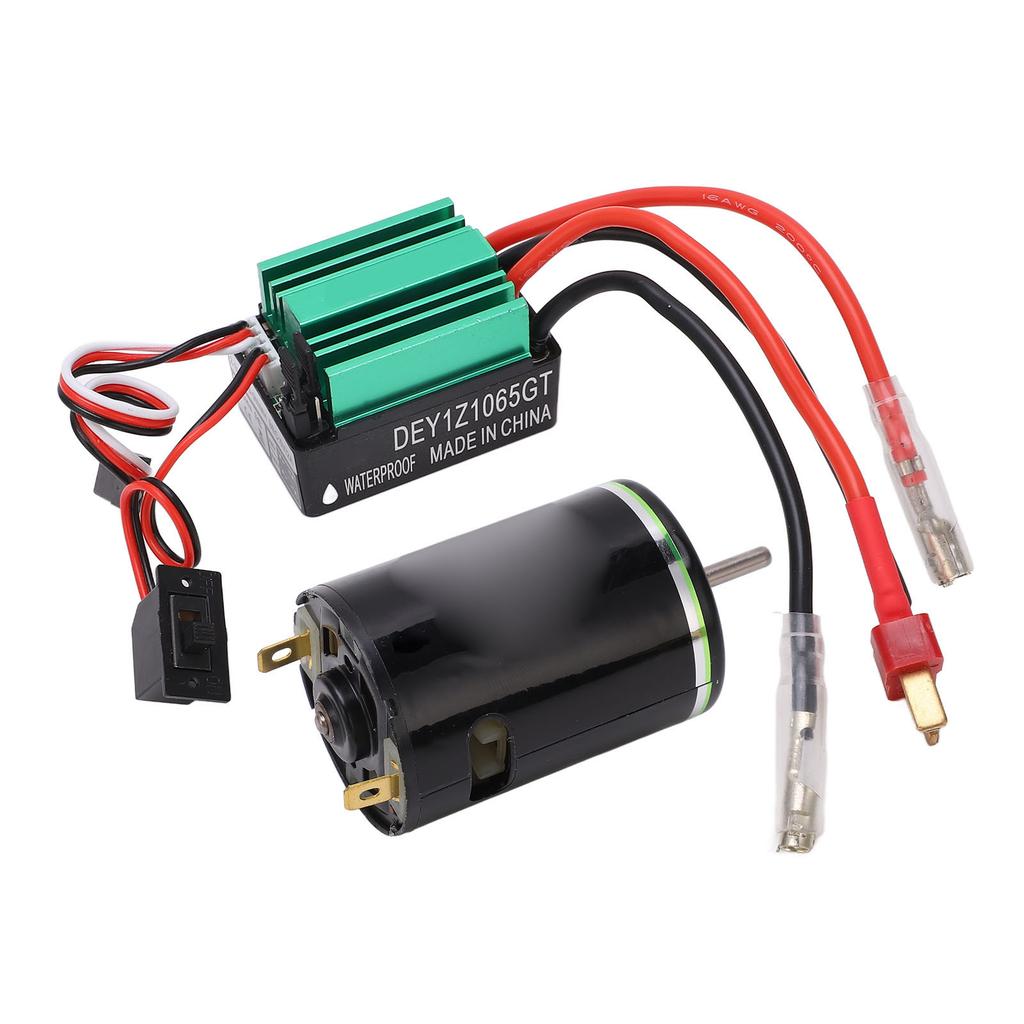

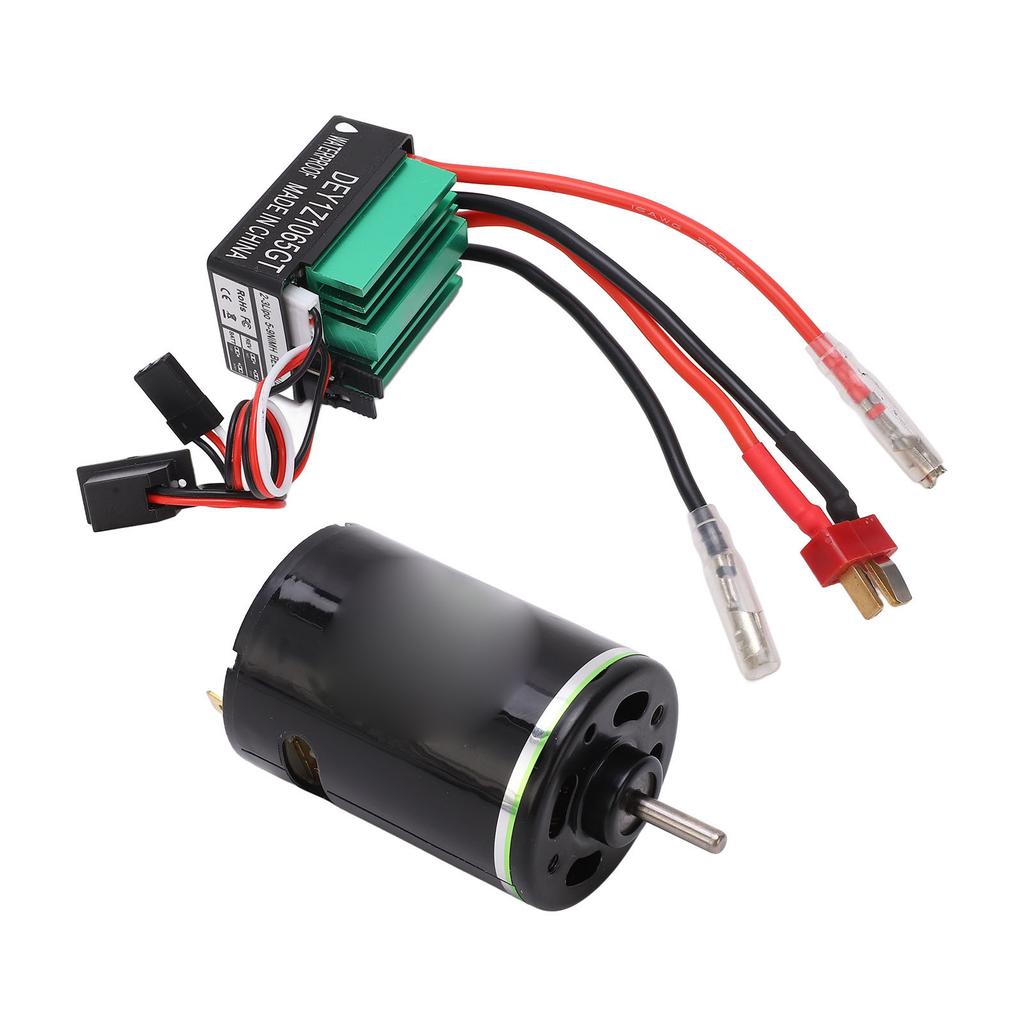

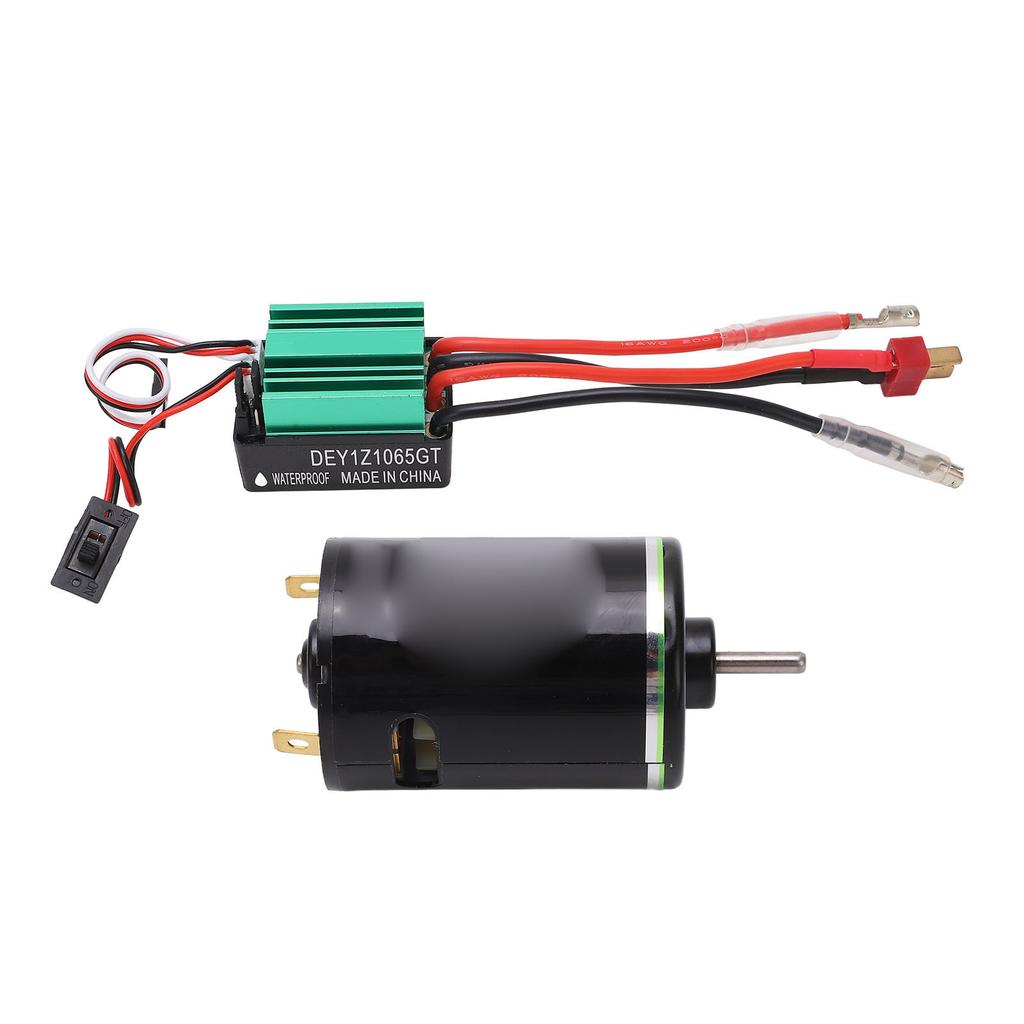

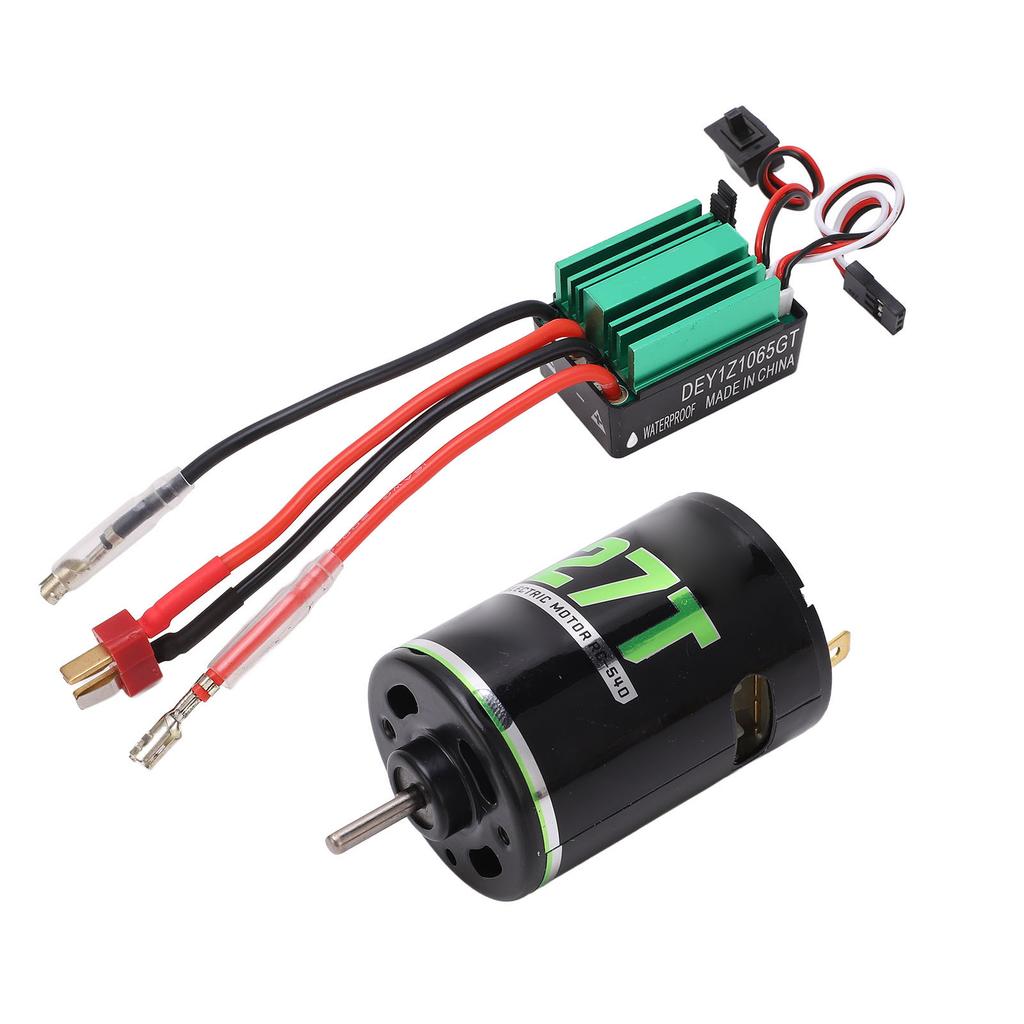

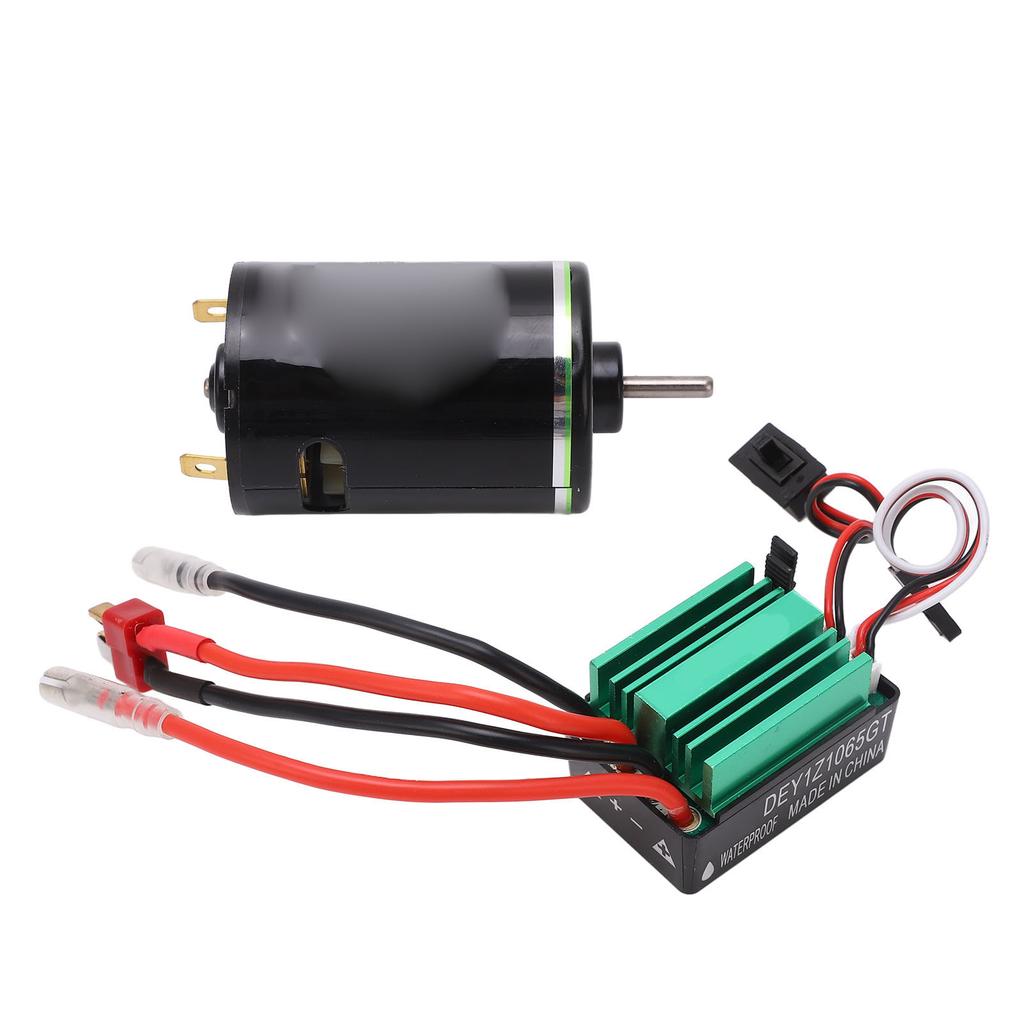

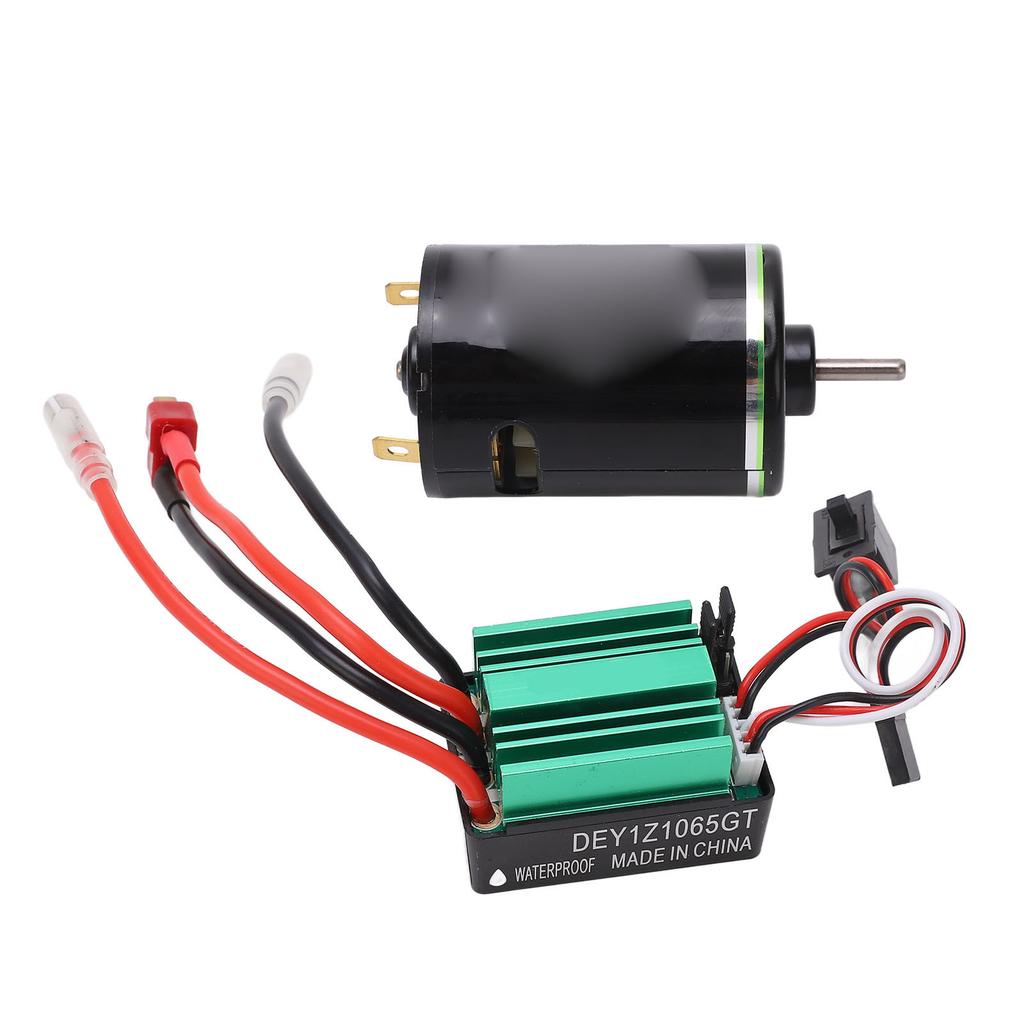

Item Type: 540 Brushed Motor
Material: Iron, Plastic, Copper
Color: Black Green
540 Brushed Motor:
Use Voltage: 7.2 7.4V
Maximum Voltage: 12V
Motor Length (excluding Shaft): Approx. 50mm 2in
Motor Diameter: Approx. 36mm 1.4in
Shaft Length: Approx. 12mm 0.5in
Shaft Diameter: 3.175mm (1 8in)
65A Brushed ESC:
Battery Support: 5 9NiMH, 4 6NiCd (4.8 7.2V)
Lithium Battery 2 3S: 7.4V 11.1V
Current Parameters: Forward 320A, reverse 160A, brake 270A
BEC Output: 5V 2A (power supply for receiver and servo)
Function: Forward and brake; forward, brake and reverse
ESC Size (Without Wire): 43 x 30 x 28mm 1.7 x 1.2 x 1.1in
Applicable Models: For Axial Scx10 90046, for Traxxas, for HSP, for Redcat, for Tamiya, for HPI.

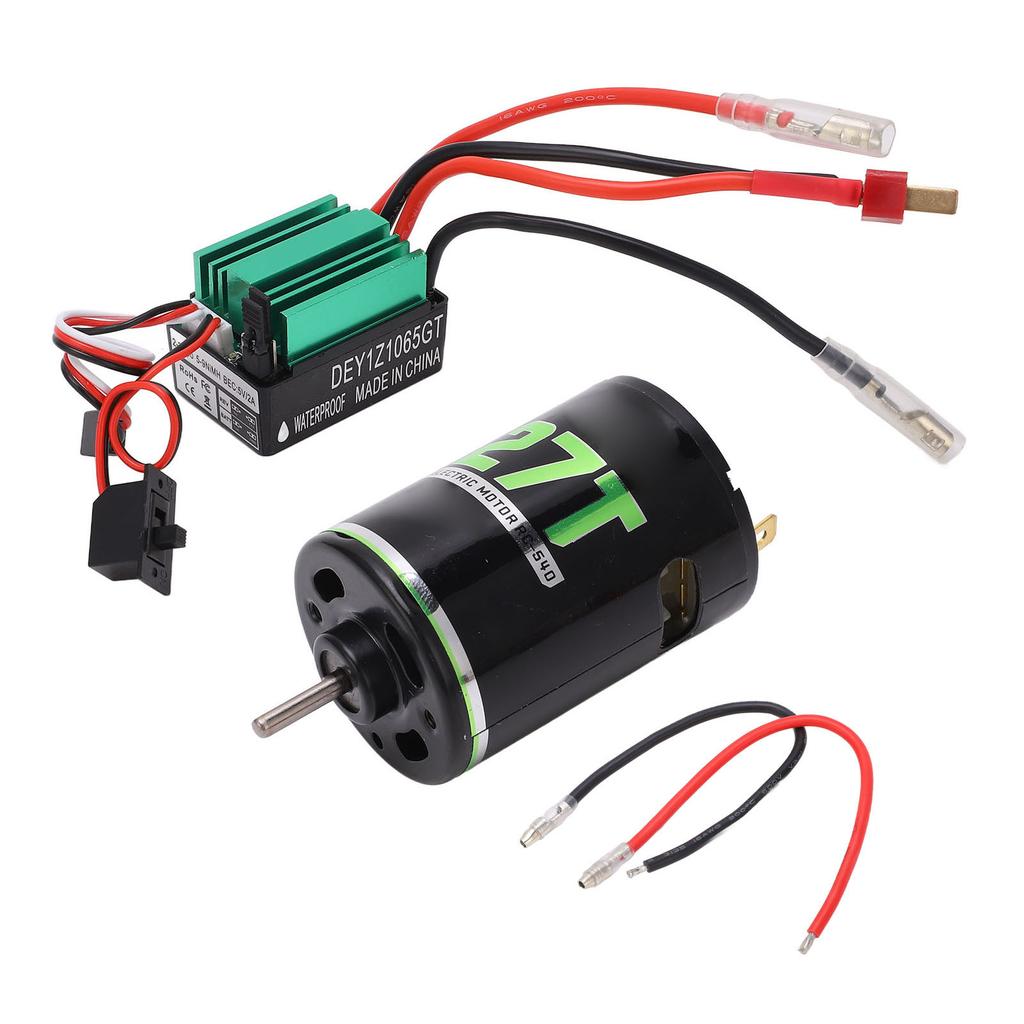

Package List:
1 x 540 Brushed Motor2 x Connecting Wires1 x 65A ESC1 x User Manual
Note:
1. Due to manual measurement, 1‑3mm error is allowed, thank you!2. Due to the difference between different monitors, the picture may not reflect the actual color of the item.3. This product does not have the ESC reverse connection protection function. If the power supply is reversed, it may cause irreversible damage to the ESC and the battery in an instant. Please pay special attention to the polarity of the battery when using it.4. If the rotation of the motor is wrong, please exchange the two motor wires. The motor wire is not divided into positive and negative poles
